CENTRE CONSOLE ARMREST INSTALLATION GUIDE
Suitable for Pro and Lite Models
Transform your factory 70 Series centre console into a comfortable, functional armrest. This step-by-step guide covers everything you need to know — no drilling, no permanent modifications, and no special tools required. Installation takes just a few minutes.
STEP 1
BEFORE YOU BEGIN
Take a look at your factory centre console lid. This is where the Centre Console Armrest will sit, transforming a basic storage compartment into a premium padded armrest with added functionality.
STEP 2
OPEN THE CONSOLE LID
Open the centre console lid fully and leave it in the upright position, ready for the armrest to slide on.
STEP 3

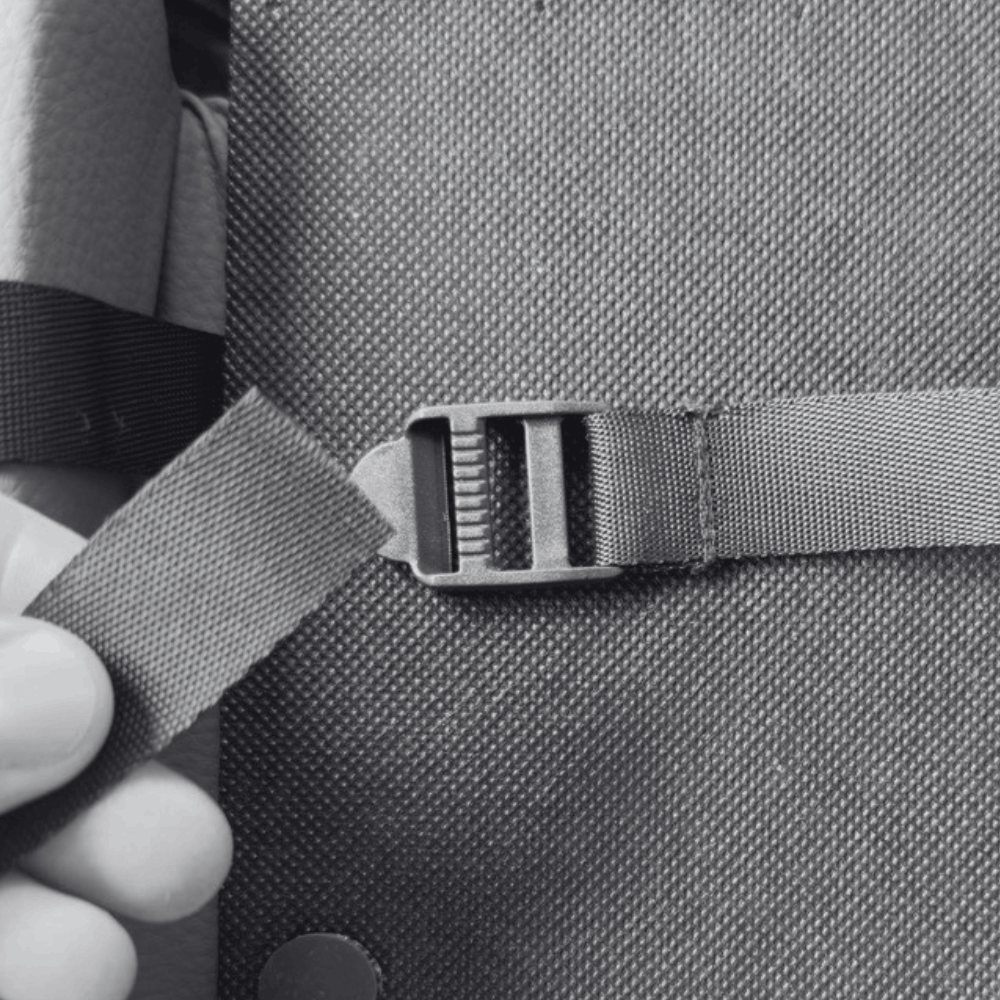

GRab the end of the strap
Grab the end of the strap and prepare to feed it under the buckle as shown in the following step.
STEP 4

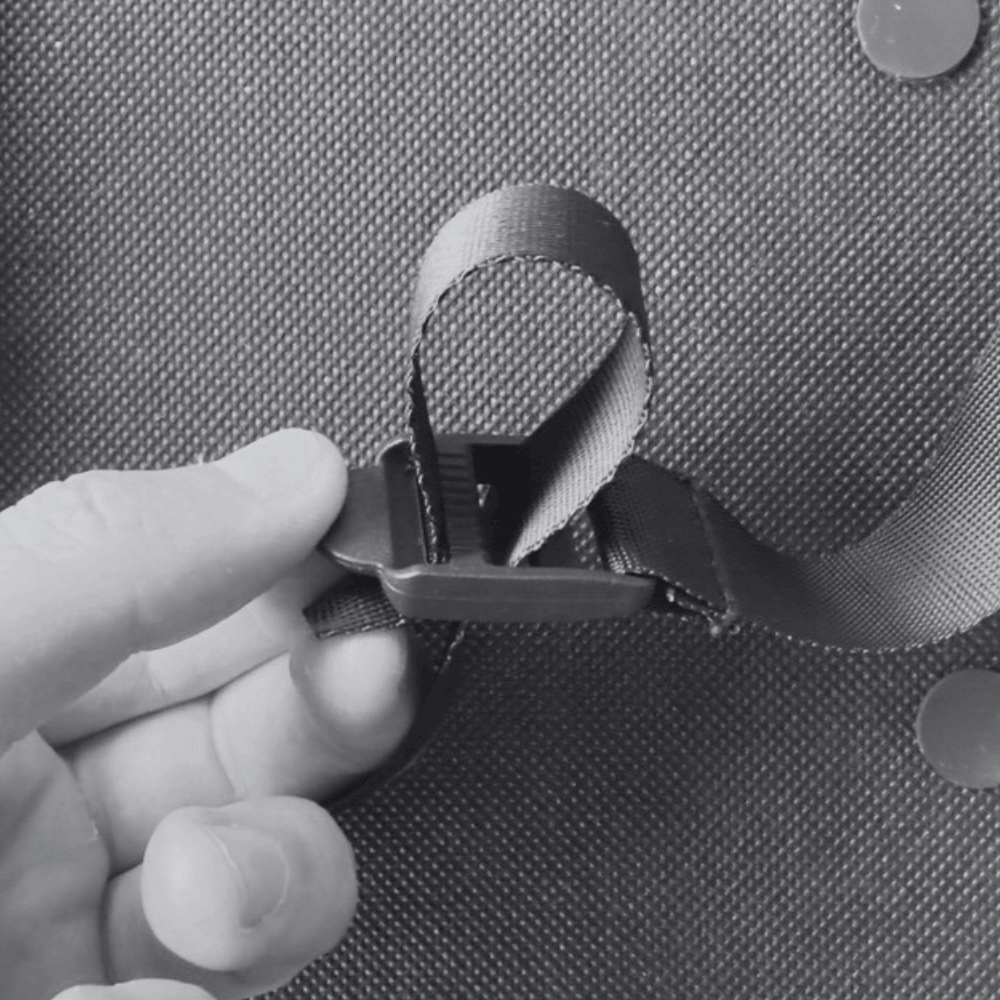

THREAD THE STRAP THROUGH THE BUCKLE
Feed the end of each strap underneath and through the buckle, leaving enough slack to fit over the console lid.
STEP 5

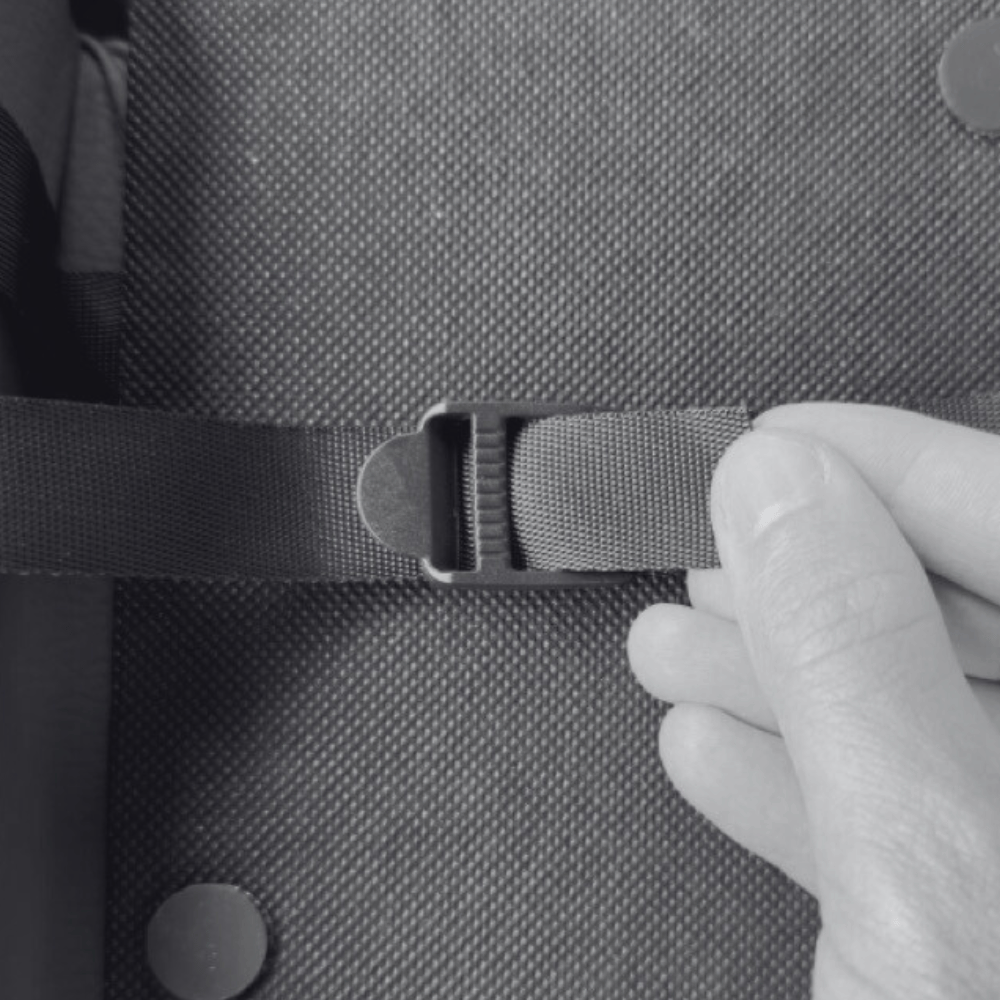

SECURE THE STRAP
Loop the strap back through the buckle to create a secure hold. Repeat on the opposite side. The straps should be loose enough to slide the armrest onto the lid, but ready to tighten once in position.
STEP 6

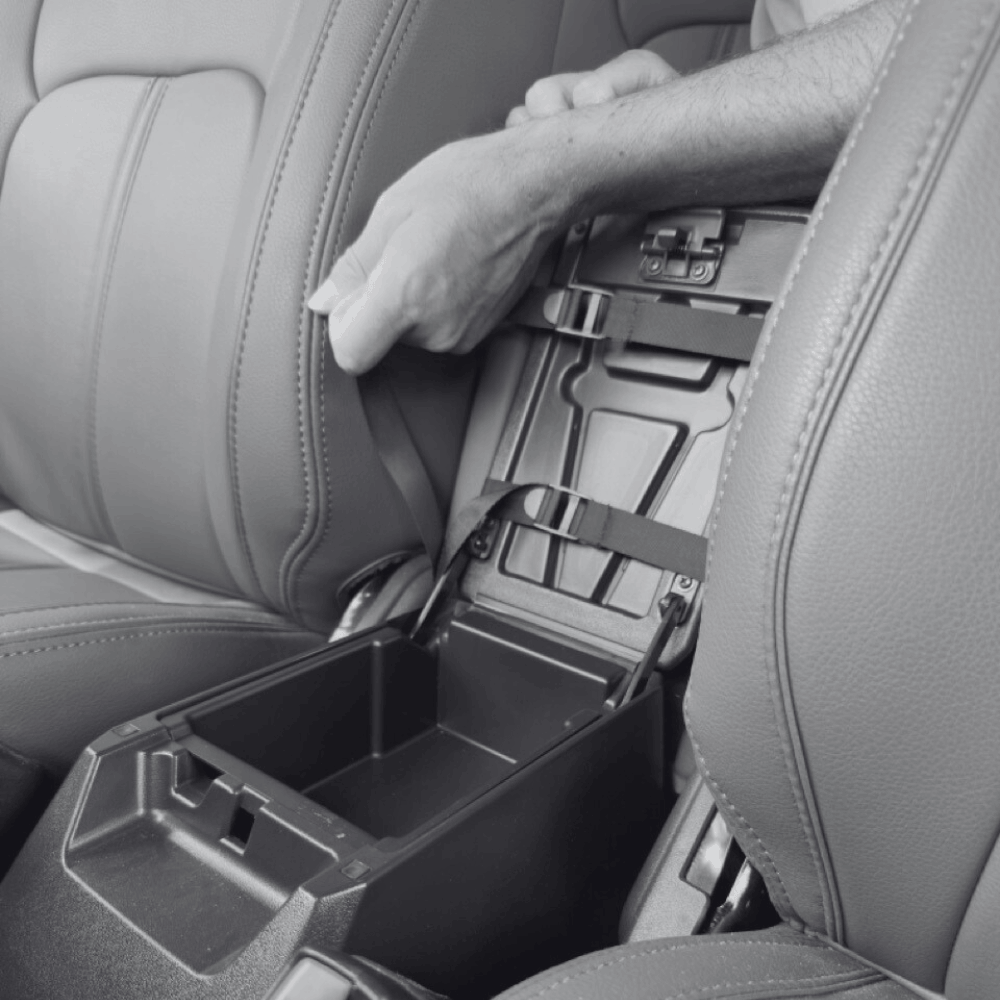

SLIDE ONTO THE CONSOLE LID
With both straps loosely buckled, slide the Centre Console Armrest onto the open console lid. Once in place, pull each strap firmly to tighten the buckles for a snug, rattle-free fit.
STEP 7

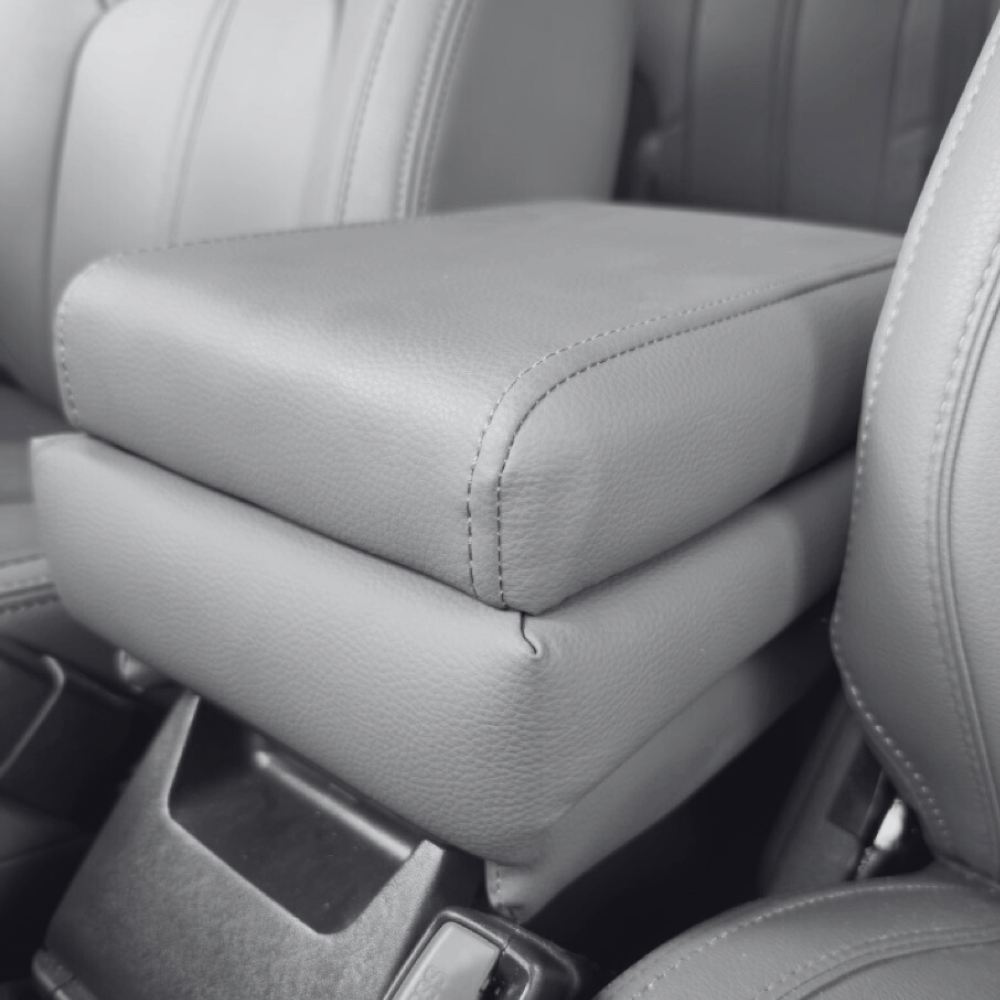

INSTALLATION COMPLETE
That's it — your Centre Console Armrest is fitted and ready to go. You now have a comfortable padded armrest with additional storage, and if you opted for the Pro model, integrated cup holders as well. Enjoy the upgrade.
